The Fata Morgana and Optistar binoculars represent a distinctive, interesting, and enduring binocular development. This
design was invented by Alfred Baumann of
Kölnische Straße 4,
Cassel Germany in 1919, who applied for a U.S. patent July 28, 1919 #313,961 and was granted an optical instrument patent
Nov. 15, 1921 #1,397,156. He applied for French patent June 10, 1919 granted Jan. 1921 # 518,603. He applied for a British patent Aug 28, 1919 and it was granted Sept 30 1920 #151,452. Alfred Baumann also filed for a US trademark of the name “Fata-Morgana” for opera glasses, field glasses etc. # 120,983 July 28, 1919, claiming use of the name for optical goods since “early in 1919”, per the Official Gazette of the US Patent office, Vol. 283 No 1 of Feb 11, 1921. Baumann was operating as Optische Werke Alfred Baumann & Co in 1920. The 4x Fata Morgana and 6x Optistar binoculars were believed also marketed by the firm August F
ϋ
llgrabe of Cassel Germany (Kassel after 1926). Ninety years later, these binoculars still occasionally turn up in Germany, France, Austria, England, Spain, the USA, Switzerland, Ireland, Canada, Italy, Poland, Latvia, Uruguay, Croatia, Australia & New Zealand and elsewhere. There is even good documentation of dealerships in the Dutch East Indies. These unique binoculars would have been well known to anyone in the optics trade in Germany at the time. The optics are really surprisingly good, especially for the time period. And they are precursors for the other binoculars on this website.
|
|
Japanese External Reverse Porro Prism Binoculars.
VIRTUAL MUSEUM
|
|
Variety of 1920’s Fata Morgana and Optistar binoculars made in Cassel, Germany.
Collection of Mark Ohno
|
|
MARK OHNO |
|
Ca 1920’s Optistar 6x binoculars sn 41431. Origin: Cassel, Germany.
Binoculars Sourced in
Germany.
Collection Mark Ohno
|
|
6x |
|

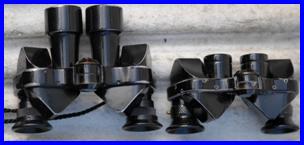

Comparison of an early Fata Morgana 4x and Optistar 6x (middle picture, 6x is on top and at left).
Vergleich eines jüngeren „Fata Morgana“-Fernglases (4x) mit einem „Optistar“ -Fernglas (6x). (das „Fata Morgana“ ist das obere bzw. rechte Fernglas). |
|
Optistar Miniature Binoculars
.
Das Miniaturfernglas „Optistar“. «Optistar» Jumelles
Miniatures. «Optistar»
Миниатюрные бинокль.
Optistar
ミニチュアの双眼鏡
.
«Optistar» Prismáticos en Miniatura. Binocolo
«Optistar» in Miniatura. |
|
Fata Morgana and Optistar Miniature Binoculars
.
Die Miniaturferngläser „Fata Morgana“ und „Optistar“. «Fata Morgana» Jumelles Miniatures et «Optistar» Jumelles Miniatures. «Fata Morgana»
Миниатюрные бинокль,
«Optistar»
Миниатюрные бинокль.
«Fata Morgana» Prismáticos, Optistar Prismáticos,
en Miniatura. Binocolo
«Fata Morgana» in Miniatura. Binocolo
«Optistar» in Miniatura. |
|
The Fata Morgana Name.
Herkunft des Namens „Fata Morgana“. Le
Nom de «Fata Morgana».
мя
«Fata
Morgana». La «Fata Morgana» Nombre. Il Nome «Fata Morgana» .
|
|
It could be said that Alfred Baumann started the practice of giving these small binoculars interesting and imaginative names with the “Fata Morgana” . The Fata Morgana is an optical mirage caused by temperature inversion, where a second inverse image is created. The phenomenon is believed to be named for Morgan Le Faye, a character of Arthurian legend (Geoffrey of Monmouth, “Historia Regina Britannae” circa 1138). Morgan, also called Morgana, was a “fay”, or sorceress. The optical phenomenon was certainly attributed to magical influences throughout much of human history. |
|
Morgan La Faye casting a spell in Frederick Sandy’s 1864 painting |
|
Fata Morgana & Optistar Binoculars: Known Serial Numbers
.
Dokumentierte
Seriennummern von Ferngläsern der Marken „Fata Morgana“ und „Optistar“.
Les Jumelles «Fata Morgana» et «Optistar»:
Numerós de Serie Connus.«Fata Morgana»
И
«Optistar»
бинокль: известных серийных номеров.
12
Бинокли распространение в Соединенных Штатах и в Мексике.
«Fata Morgana» y «Optistar» Prismáticos : Documentado Números de Serie. Binocoli «Fata Morgana» e «Optistar»: Numeri Seriali Noti. |
|
Fata Morgana
4x
binoculars.
Ferngläser „Fata Morana“
4x
. Les Jumelles «Fata Morgana»
4x
. «Fata Morgana 4x»
Миниатюрные
б
инокль.
«Fata Morgana» Prismáticos
4x
.
|
|
Serial # 520 (pin & slot, sil)

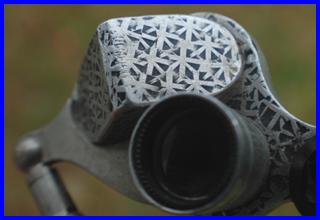

Tatzenkreuz embossing
collection of Jack Kelly, USA
Serial # 620 (pin & slot, sil, 6F)
Tatzenkreuz embossing
collection of Mark Ohno, USA
Serial # 6075 (pin & slot, blk, 6F) collection of Mark Ohno, USA
Serial # 6322 (pin & slot, blk, 6F) collection of Mark Ohno, USA
Serial # 6548 (pin & slot, blk) auctioned Germany 2018
Serial # 8383 (VK, sil, WP, 6F, SNPC)

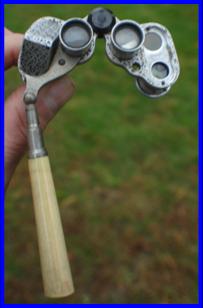

straw pattern, w/lorgnette handle
Mark Ohno USA
Serial # 8766 (VK, blk) WP) auctioned Lithuania 12/2015
Serial # 9532 (VK, blk) WP) auctioned Norway 9/2013
Serial # 9585 (config. NA) observed private collection
Serial # 9613 (VK, blk) WP, 6F), SNPC collection of Mark Ohno, USA
Serial # 9755 (config. NA) list of Dr Hans Seeger, Hamburg, Germany
Serial # 9804 (VK, blk, WP) collection of Imperial War Museum, UK
Serial # 10202 (VK, blk, WP,7F) collection of Mark Ohno, USA
Serial # 10498 (VK, blk, WP) auctioned in UK 2018
Serial # 10539 (VK, silver, WP)
circle pattern embossing
) collection Nico Westphal, NL
Serial # 10877 (VK, blk, WP) auctioned Germany 6/2016
Serial # 11019 (VK, blk, WP) collection of Nico Westphal, Netherlands
Serial # 11271 (VK, blk, WP , 7F) collection of Mark Ohno, USA
Serial # 11432 (CHK, blk, WP)
w/ lorgnette handle
) collection of Nico Westphal, NL
Serial # 11900? (VK, blk, WP ) auctioned UK 5/2013
Serial # 11908 (VK, blk, WP ) auction Spain 2018
Serial # 12144 (VK, blk, WP ) auctioned UK 3/2014
Serial # 12278 (blk) list of Dr Hans Seeger, Hamburg, Germany
Serial # 12691 (VK gilded, WP, 7F)
w/ lorgnette handle
collection of Mark Ohno, USA
Serial # 12925 (VK, blk, WP ) collection fernglasmuseum.at
Serial # 12925 (VK, blk, WP ) collection in Spain
Serial # 13407 (CHK gilded, WP,)
w/ lorgnette handle
auctioned UK 2015
Serial # 13730 (VK, blk, WP ) auction Spain 2018
Serial # 14133 (CHK, blk, WP, 7F)
w/ lorgnette handle
collection of Mark Ohno, USA
Serial # 14211 (CHK, blk, WP, 7F) collection of Mark Ohno, USA
Serial # 14420 (gilded, WP) list of Dr Hans Seeger, Germany
Serial # 14441 (blk, WP,7F) collection of Mark Ohno, USA
Serial # 14491 (blk, WP) collection of Mark Ohno, USA
Serial # 14712 (CHK gilded, WP,)
w/ lorgnette handle
collection of Ulrich Zeun, Germany
Serial # 14971 (CHK gilded, WP,)
w/ lorgnette handle
collection of Ron Rosen, USA
Serial # 14985 (CHK, gilded, WP) collection of Melanie Willis, USA
Serial # 15084 (CHK gilded, WP,)
w/ lorgnette handle
, auctioned Spain 8/2013
Serial # 15105 (CHK, gilded, WP, 7F) collection of Mark Ohno, USA
Serial # 15286 (gilded,WP) auctioned in UK 2011
Serial # 15310 (CHK, blk, WP,7F) collection of Mark Ohno, USA
Serial # 15504 (CHK, blk, WP) collection of Nico Westphal, Netherlands
Serial # 16794 (config. NA) auctioned Ebay 2007
Serial # 17218 (CHK, blk, WP, 7F) collection of Mark Ohno, USA
Serial # 17360 (CHK, blk, WP.7F) collection of Mark Ohno, USA
Serial # 17472 (CHK, gilded, WP) auctioned France 2017
Serial # 17601 (CHK, blk, WP) collection of Anna & Terry Vacani, UK
Serial # 17976 (blk) list of Dr Hans Seeger, Hamburg Germany
Serial # 18366 (CHK, blk, WP) autioned Germany 9/2013
Serial # 18588 (CHK, guilded,WP, 7F) collection of Mark Ohno, USA
Serial # 18671 (CHK, gilded) collection Nico Westphal, Netherlands
Serial # 19208 (blk, WP) collection of Leitz Museum, Germany
Serial # 19503 (blk, WP) Auctioned Ebay 2013, UK
Serial # 20262(CHK, gilded, WP) auction Netherlands 3/2017
Serial # 20241 (CHK, gilded, WP, 7F)
w/ lorgnette handle
collection of Mark Ohno, USA
Serial # 20524 (CHK, gilded, WP) auction Germany 10/2012
Serial # 20850 (CHK, blk, WP) auction Germany 4/2013
Serial # 20873 (CHK, blk, WP) collection of Ulrich Zeun, Germany
Serial # 20950 (config NA, blk) collection of Günter Kampf, Germany
Serial # 20955 (blk, WP, 7F) collection of Mark Ohno, USA
Serial # 21228 (CHK, blk, WP)
w/ lorgnette handle
collection of Mark Ohno, USA
Serial # 21850 (config NA) auctioned Germany 2015
Serial $ 21905 (config NA) auctioned USA Nov 2012
Serial # 22421 (CHK, gilded WP 7F) collection of Mark Ohno, USA
Serial # 23261 (blk) list of Dr Hans Seeger, Hamburg, Germany
Serial # 24447 (NP, guilded,) with box, collection of Mark Ohno, USA
Serial # 24604 (NP, guilded, ) list of Dr Hans Seeger, Germany
Serial # 24687 (gilded, WP) list of Dr Hans Seeger, Germany
Serial # 24744 (gilded) list of Dr Hans Seeger, Hamburg, Germany
Serial # 24792 (gilded) list of Dr Hans Seeger, Hamburg, Germany
Serial # 24825 (gilded, VK) Czech auction site 2015
Serial # 24897 (BE, NP, VK, blk), Ebay Germany (Bayern Fürth)1/2014
Serial # 25071 (BE, NP, VK, blk, 10F), blk collection of Mark Ohno, USA
Serial # 2517 (BE, NP, VK, blk, 10F), blk collection of Mark Ohno, USA
Serial # 25490 (config NA) auction USA 1/2012
Serial # 25261 (config NA) offered at auction Michigan, USA, 2012
Serial # 25419 (BE,NP, VK, blk) collection Per Corell, Denmark
Serial # 25490 (BE, NP, VK ,blk) collection of Nico Westphal, Netherlands
Serial #25573 collection Ken, UK
Serial # 25585 (config. NA) private collection
Serial # 25708 (config. NA) list of Dr Hans Seeger, Hamburg, Germany
Serial # 25804 (BE, NP, VK, blk,10F) collection of Mark Ohno, sourced Prague Czech Republic
Serial # 28264 (gilded, VK) German auction site 2018
Serial# 28566 ) collection of Nico Westphal, Netherlands
Serial # 28766 (BE, NP, VK, blk, 10F) collection of Mark Ohno, USA, sourced in the UK
Serial # 28750 (BE, NP, VK, blk, 10F) marked “
made in Germany
” collection Mark Ohno, USA
Serial # 28863
(BE, NP, VK, blk), collection of Per Corell, Denmark
Serial # 35117 (BE, NP, VK, blk, 10F), marked to Dutch East Indies dealer Ludwig Bünger on
Java, collection of Mark Ohno, sourced in Germany
No Serial no/ very late (BE, NP, blk10F)
Prinzess private brand
collection of Mark Ohno, USA
|
|
Optistar
6x
Binoculars.
Ferngläser „Optistar“. Les Jumelles «Optistar». «Optistar»
Миниатюрные бинокль.
«Optistar» Prismáticos.
|
|
Serial # 38597 (BE NP) collection of Ulrich Zeun, Germany
Serial # 39186 (BE NP) collection Anna & Terry Vacani, UK
Serial # 39519 (BE NP) collection of Nico Westphal, NL
Serial # 39552 (BE NP) collection of Mark Ohno, USA
Serial # 39612 (BE NP) collection of Mark Ohno, USA
Serial # 41292 (BE, NP) collection of Mark Ohno, USA
Serial # 41314 (BE, NP) collection of Mark Ohno, USA
Serial # 41431 (BE, NP) collection of Mark Ohno, USA
Serial # 41435
Unmarked
(BE, NP) collection of Mark Ohno
Serial # 41534 (NA) auction UK 6/2013
Serial # 41692 (NA) auction Germany
Serial # 41892 (BE,NP) auction Germany 1/2013
Serial # 42144 list of Dr Hans Seeger, Hamburg, Germany
Serial # 42200 (BE, NP) auction UK 2018
Serial # 42473 (BE, NP) collection of Nico Westphal, NL
Serial # 42556 list of Dr Hans Seeger, Hamburg Germany
Serial # 42784 (BE, NP) collection of Mark Ohno, USA
Serial # 43295 (BE, NP) collection of Nico Westphal, NL
Serial # 43739 (BE, NP) collection of Mark Ohno, USA
Serial # 43820 (BE, NP)
Ecker private brand
Mark Ohno, USA
Serial # 44485 (BE, NP) collection Anna & Terry Vacani, UK |
|
Optical fata morgana |
|
Based on lowest and highest observed serial numbers in this small sample, production of Fata Morgana binoculars exceeded 34,597 units. It is not known if Fata Morgana and Optistar binoculars serial numbers eventually overlapped. |
|
Based on lowest and highest observed serial numbers in this small sample, production of Optistar binoculars exceeded 5,888 units . |
|
Fata Morgana Binoculars: Distribution in the USA and Mexico
.
Vertriebswege der „Fata Morgana“-Fernglas in den USA und Mexiko. Reparations de Jumelles «Fata Morgana» aux Etats-Unis et au Mexique. «Fata Morgana»
Бинокли распространение в Соединенных Штатах и в Мексике.
«Fata Morgana» Prismáticos Distribución en los Estados Unidos y México. Binocolo «Fata Morgana» Distribuzione in USA e Messico. |
|

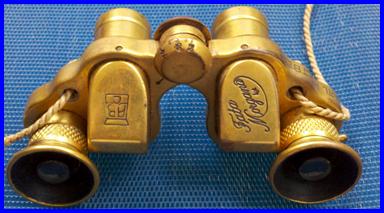

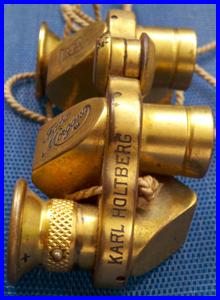

Gilded pair of brass 1920’s Fata Morgana 4x 12 binoculars,
Engraved with owner’s name. Origin: Cassel, Germany. C
ollection of Melanie Willis , USA, Photos Melanie Willis
|
|
Gilded Fata Morgana Binoculars
Vergoldetes „Fata Morgana“- Fernglas. Jumelles Dorées «Fata Morgana».
Позолоченное
«Fata Morgana»
Бинокль.
Fata Morgana
金
めっきされた双眼鏡
.
«Fata Morgana» Prismáticos Chapado en Oro. Binocolo
«Fata Morgana» Dorato in Miniatura. |
|
CHK
-
C
ross
H
atch
K
nurl ring,
VK
-
V
ertical
K
nurl ring,
WP
-ring
W
ith
P
in,
NP
-ring
N
o
P
in,
blk
-black,
sil
-silver,
NA
-
N
ot
A
vailable
BE
-
B
aklite one piece
E
yepiece,
6F
-6mm
F
rame,
7F
-7mm frame,
10F
-10mm frame,
SNPC
-Serial
N
umber on
P
rism
C
over
|
|
(approximate translation) “Get a copy of our Fata Morgana prism binoculars / Several new patents registered / a wonderful bright opera and travel binocular/ Carefully manufactured of first class material./ Warranted/ Is the smallest and lightest binoculars/ 92mm greatest diameter for Your Pocket/ Only 75 grams / 4 power magnification/ Field of View 20 meters at 100 meters/ each eyepiece and the papillary distance is adjustable. Price 75 francs/ You secure a copy immediately at the FATA MORGANA COMPANY. Biel 12, shipping cash on delivery or postal check or advance payment. Biel 1 VA 1024 “ |
|

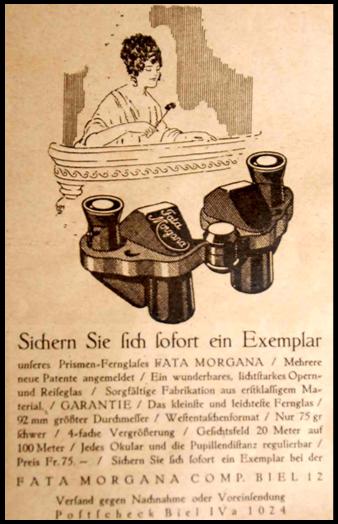

Fata Morgana Binoculars with Handle,1919 Swiss Ad.
Miniaturfernglas „Fata Morgana“ mit Haltegriff, Zeitungsannonce Schweiz, 1919. Jumelles «Fata Morgana» Avec Poignée, 1919 Annonce Suisse. «Fata Morgana»
Бинокль с ручкой,
1919
года швейцарский реклама.
«Fata Morgana» Prismáticos con Empuñadura, Anuncio de Suiza 1919. «Fata Morgana» binocolo con manico, 1919 Pubblicà Svizzera.
|
|
Dec 1919 Swiss advertisement suggests initial production was around the end of 1919, which matches the patent filings, and the trademark claims that the use of the name started in early 1919. Collection of Mark Ohno. |
|
If my math is correct, by changing 1919 Swiss francs to 1919 US dollars, and then changing 1919 US dollars to 2010 US dollars, the price was around $181.26 in equivalent 2010 US dollars. |
|

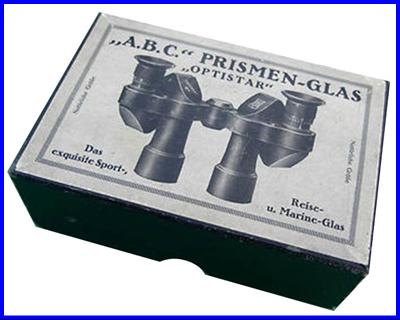

Original Optistar pasteboard box.
Collection of Mark Ohno.
Box sourced in
Germany
.
(„Optistar“ Originalkarton)
|
|
Note lack of “ABC” Logo in drawing |
|
Photo courtesy of Marc
in Montevideo Uruguay
|
|
Photo courtesy of Ron Rosen. Collection of Ron Rosen, USA.
Gilded Fata Morgana binoculars with lorgnette handle.
„Fata Morgana“-Fernglas, vergoldet, mit Telescop-/Lorgnette-Handgriff.
|
|
Two Earliest Known Fata Morgana Binoculars (serial # 520, & #680
).
Älteste Bekannte „Fata Morgana“ Ferngläser mit Tatzenkreuz-Dekor, Seriennummer 520 und 680. Premièrs Jumelles «Fata Morgana», Numéro de Serie 520 et 680.
Два первых известных
«Fata Morgana»
бинокль. Серийный номер
520
и
680. Dos de los Primeros Prismáticos Conocido «Fata Morgana» : Número de Serie 520 y 680. Due Binocoli Più Conosiuti «Fata Morgana»
: I Numeri di Serie 520 e 680. |
|
Pending future discovery, these two pairs of Fata Morgana binoculars are currently the earliest known surviving examples (serial numbers 520 and 680), and they have a number of interesting features that are not found on other known examples. I believe these were probably manufactured in 1919. They lack the ABC marking found on all other documented Fata Morgana binoculars, but the ABC is also absent in the 1919 Swiss advertisement. On these binoculars the barrel of the objective lens pack fouls the prism covers, requiring a relief cut. Later examples changed the geometry so that the barrels have enough clearance. These Fata Morgana binoculars have a hand stamped design embellishment all over of the Tatzenkreuz (foot cross), or Cross Pattée (footed cross), sometimes also known as the “iron cross” or
Eisernes Kreuz
after the German WWI and WWII military honor medal of that design. (nearly five and a half million German iron cross medals were estimated awarded in WWI). In 1919 the recent war was an all pervasive influence in Germany. Approximately 13.4 million Germans served in the military, or 20% of the total population. Germany had 5 million military casualties and 2.1 million military deaths. Personal items commemorating WWI in some way are common, and those incorporating the Tatzenkreuz or
Eisernes Kreuz is very common on German items.
But the symbol was also a generic Christian religious symbol associated with the Knights Templar, and something sold in the US in 1919 decorated this way would not necessarily have been associated with the German medal (as would certainly have been the case within Germany). Focus is accomplished on these binoculars by sliding a pin in an angled slot, to cam the diopter in and out of its barrel. Later models internally work in a similar fashion, but use a focus ring and pin, and the ring is much easier to grasp while looking through the binoculars. It is quite difficult to get a finger on the pin and slide it while viewing on these early models. With neck string these binoculars weigh 76.5 grams, close to the 75 grams claimed by the advertisement, and is reflective of their (unpainted) aluminum construction. By comparison, the gilded Fata Morgana of brass construction binoculars weighs a hefty 150 grams. By sometime in 1920 a revised focus mechanism with ring was pictured, so these binoculars are probably from1919, the
first year of production. |
|
Circa 1919 Fata Morgana
4x binoculars, serial number 680, Origin: Cassel, Germany.
Binoculars Sourced in
England
Collection of Mark Ohno , USA
Photos Mark Ohno
|
|
Focus mechanism of pin and slot to cam internal diopter in and out.
okussiermechanismus : der innenliegende Diopter wird über Knopf und Führungsschlitz bewegt. |
|
Relief clearance cut into the objective barrel. |
|
The 1919 advertisement clearly shows the pin and slot focus mechanism, and also has no ABC emblem, so it is reflective of the configuration found on binocular serial # 680 |
|
German WWI Iron Cross Medal
Collection Mark Ohno
Deutscher Militärorden
„Eisernes Kreuz” (1WK).
Sammlung
Mark Ohno |
|
Ecker Marked Optistar 6x Binoculars (serial # 43820)
„Optistar“-Fernglas der Schweizer Vertriebsfirma Ecker, Luzerne. (Seriennummer 43820). Jumelles «Optistar»— Marqué de Distributeur Ecker Luzern, 43820. Ecker
отмечен
«Optistar»
бинокль. Серийный номер
43820. Ecker Marcado Prismáticos 6x «Optistar», Número de Serie 43820. Ecker Contrassegnato Binocoli
«Optistar» (Numero di Serie 43820).
|
|
W. (William) Ecker of Kapellplatz 10 Luzern (Lucerne) Switzerland was a photographic supply co. and Opticians They appear in 1913 and 1922 directories by Karl Baedeker covering Switzerland, Italy, Savoy, Tyrol, & Chamonix. The firm is known to have branded opera glasses, barometers, thermometers and similar items with their name. It seems to indicate the first distributor branding of this type of miniature binoculars. The firm Ecker AG still occupies Kapellplatz 10, 6004 Luzern Switzerland in 2012. Pending (probable) future discoveries: this is one of the only three known examples of a private branded or dealer marked Fata Morgana or Optistar binocular (the others being the Prinzess Fata Morgana variant and Dutch East India dealer Bünger marked Fata Morgana), and is the second latest (newest) documented Optistar binoculars to be manufactured according to the serial number.
|
|
Ecker Luzern private branded Optistar 6x binoculars
Origin: Cassel, Germany.
Binoculars Sourced in
England
Collection of Mark Ohno
|
|
Black Fata Morgana 4x Binoculars with Opera Glass or Lorgnette Handles
(serial number #14133 & 212268)
Fata Morgana“-Fernglässer (4x) mit schwarzem Handgriff,
Seriennummer 14133 & 21228. Jumelles «Fata Morgana» Noires Avec Manches de Lorgnette de Spectacle, Numéro de Serie 14133 & 21228.
Черный
«Fata Morgana»
бинокль с телескопической ручкой. Серийный номер
14133, 21228. Negro «Fata Morgana» Prismáticos con una Empuñadura, el Número de Serie 14133 & 212218
.
Binocolo Nera «Fata Morgana» 4x con Maniglie (Numeri di Serie 14133 e 212268).
|
|
Black Fata Morgana 4x binoculars with telescoping handle. Serial #14133 „Fata Morgana“-Fernglas (4x) mit schwarzem Teleskop-/Lorgnette Handgriff
Seriennummer 1433.
Origin: Cassel, Germany.
Binoculars Sourced in
United States
Collection of Mark Ohno
|
|
Two black Fata Morgana binoculars with opera glass or Lorgnette telescoping folding handles. At the moment these plus serial #11432 are the only known examples in black with black handle, otherwise similar to the guilded Fata Morgana with handles, except the body is not
brass, and the black models have a more simple friction folding mechanism that does not lock in place. I believe that only a small portion of Fata Morgana binoculars were made with a handle, but since the 1919 ad shows a lady with Fata Morgana binoculars with handle, this “opera” or “theater” configuration must have been intended from the beginning. |
|
William Ecker
in 1925 |
|
Kapellplatz 10, Lucerne (2012)
|
|
Serial #14133
|
|
Silver color Fata Morgana 4x Binoculars with Opera Glass or Lorgnette Handles (serial number #8383), & Straw Pattern Decoration
.
Silberfarbenes „Fata Morgana“-Fernglas mit Handgriff, Strohdekor. (Seriennummer 8383) sowie Strohmusterdekoration
Jumelles «Fata Morgana» en Aluminum—Motif de Paille—avec Manches de Lornette de Spectacle.
Серебристый
«Fata Morgana»
бинокль с ручкой и соломы оформление.Серийный номер
8383. Prismáticos «Fata Morgana» Color Plata, con una Empuñadura, el Número de Serie 8383, con Decoración de Paja.
Colore Argento «Fata Morgana» 4x binocolo con Maniglie (Numero di Serie 8383) e Decorazione con motivo di Paglia. |
|

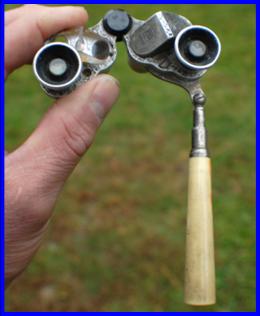

Silver (aluminum) Fata Morgana 4x binoculars Lorgnette handle and straw pattern decoration. „
Fata Morgana“-Fernglas mit handgriff, silberfarben
mit Strohdekor.
Origin: Cassel, Germany. Binoculars Sourced in
United States
Collection of Mark Ohno
|
|
Fairly early production (serial no 8383) silver (unpainted aluminum?) Fata Morgana binoculars with opera glass or lorgnette telescoping celluloid faux ivory folding handles, and with a “straw pattern” embossed design. The handle uses an adaptor plate to attach to frame of the binoculars. Pending possible future discoveries: this the only known example of a silver color Fata Morgana with handle, and the only known Fata Morgana binocular with this pattern of embossing, the 5th oldest documented surviving Fata Morgana binocular, one of two Fata Morgana binocular observed with the serial number on a prism cover rather than stamped into the frame, and the first pin & ring focus example. As found, it is missing 2 prism covers and one prism, probably reflecting a botched repair attempt. Both oculars were seized, one or the few Fata Morgana or Optistar binoculars I encountered with that issue. |
|
It took around 9 months of research to find it, but the reward was this advertisement run Oct 27, 1921 in the somewhat obscure Optical Journal and Review of Optometry which reveals the US and Mexican distribution channels for the Fata Morgana binoculars.
|
|
The George Mayerle Optical Co., the US importer/distributor of the Fata Morgana binoculars, ran classified ads seeking sales agents in a number of Journals commencing Oct 27, 1921, and then offering direct sales in newspapers in 1922. Among the newspapers were the Morning Oregonian (state of Oregon),
the Ogden Standard Examiner (state of Utah), the San Francisco News Leader (California), and Charleston Daily Mail (South Carolina). It is likely they ran other ads in other newspapers. Individual dealers also ran newspaper ads in 1922.
|
|
The location of the German Optical distributor on 960 Market St in San Francisco that was the sole distributor for the Fata Morgana binoculars in the US in 1920/1921 was a defunct luggage shop in 2011. |
|
Der Fermenname „Ecker“ auf einem ”Optistar“- Fernglas. |
|
1919 Swiss Advertisement for Fata Morgana binoculars showing handle.
Schweizer Annonce für „Fata Morgana“-Fernglas mit Handgriff ,1919. |
|
focus ring |
|
EARLIEST FATA MORGANA DOCUMENTED TO DATE
Circa 1919 Fata Morgana 4x binoculars, serial number 520 Origin: Kassel, Germany.
Collection of
Jack
Kelly, USA
Photos courtesy
of Jack Kelly
|
|
Ältestes dokumentiertes „Fata Morgana”-Fernglas, Seriennummer 520, ca 1919. Herkunft: Kassel, Deutschland.
Sammlung Jack Kelly, USA. Fotos: Eigentum von Jack Kelly. |
|
Using Fata Morgana binoculars
„Fata Morgana“ Ferngläser im Gebrauch.
Jumelles «Fata Morgana» en cours d’utilization. |
|
Fata Morgana 4x reverse poro prism miniature binoculars were invented by Alfred Baumann in 1919 |
|
Fata Morgana 4x Miniature Binoculars
Das miniaturfernglas „Fata Morgana“. «Fata Morgana» jumelles
Miniatures. «Fata Morgana»
Миниатюрные Бинокль.
Fata Morgana
ミニチュアの双眼鏡
.
«Fata Morgana» Prismáticos en Miniatura. Binocolo
«Fata Morgana» in Miniatura. |
|
Typical late production Fata Morgana 4x Binoculars. Serial number 25071.
Collection of Mark Ohno
|
|
Typical mid production Fata Morgana 4x Binoculars. Serial number 17360.
Collection of Mark Ohno
|
|
MINIATURFERNGLÄSER: DEUTSCHE URSPRÜNGE Nr 1 |
|
Les origines de l'Allemand jumelles miniatures
Истоки немецкий миниатюрный бинокль
Los orígenes del alemán prismáticos en miniatura
ドイツのミニチュアの双眼鏡の起源 |
|
Black Fata Morgana 4x binoculars with telescoping handle. Serial #21228 „Fata Morgana“-Fernglas (4x) mit schwarzem Teleskop-/Lorgnette Handgriff
Seriennummer 21228
Origin: Cassel, Germany.
Binoculars Sourced in
United States
Collection of Mark Ohno
|
|
Fata Morgana
6x
binoculars.
Ferngläser „Fata Morgana“
6x.
Les Jumelles «Fata Morgana»
6x
. «Fata Morgana 6x»
Миниатюрные
б
инокль.
«Fata Morgana» Prismáticos
6x
.
|
|
Serial # 36648 (BE NP) collection of Mark Ohno, USA |
|
ENJOY THE SITE?
Consider Participating
The website represents the unpaid effort of mostly one person and whenever anybody looks at it, then it actually costs a little bit of money out of pocket. Not a big deal and with a commitment to doing a lot with a little the website is hosted at Nearly Free Speech.net and it is very cost effective. But with as many as 1/4 million page views in busy months, each view does cost a little bit of money and over time it adds up. We really like to encourage active viewer participation: photos, information, feedback, questions, comments, suggestions, binoculars, anything. Maybe you don’t have any information or photos to contribute, but if you enjoyed this website then please also consider supporting the effort with a tiny gift: 50¢, 75¢, price of a candy bar or cup of coffee...anything.
Every 75¢ donated (which goes directly to the web hosting account and can’t be used for anything else) would pay for at least 15,000 (and perhaps a lot more) people to view the website. Many thanks to people who have helped with photos information, feedback, translation improvements, and donations.
|
|
4x |
|
To donate a small sum to help host this site
paste the following on your browser:
https://www.nearlyfreespeech.net/contribute/
miniaturebinoculars.com |
|
MINIATURE BINOCULARS WEB SITE VIEW COUNT UPDATED 9/20/2018:
10,672,573
PAGE VIEW S
|
