Text Box:  VINTAGE MINIATURE BINOCULARS

Mark Ohno

Clean the Oculars of CF Miniature Binoculars.   Reinigen Sie die Okulare der Mitteltreib Mini Fernglas. Nettoyer les       Oculaires de CF Jumelles Miniatures. Очистите Oculars Центра основное внимание    уделяется миниатюрные бинокль. Rengöring av Centre Focus Kikare Miniatyr.   Limpiar los Prismáticos Oculares en   Miniatura:   Centro Tipo de Foco. Pulire Gli Oculari del Binocolo in Miniatura: Centro di Messa a Fuoco centrale.

Text Box: Step 1

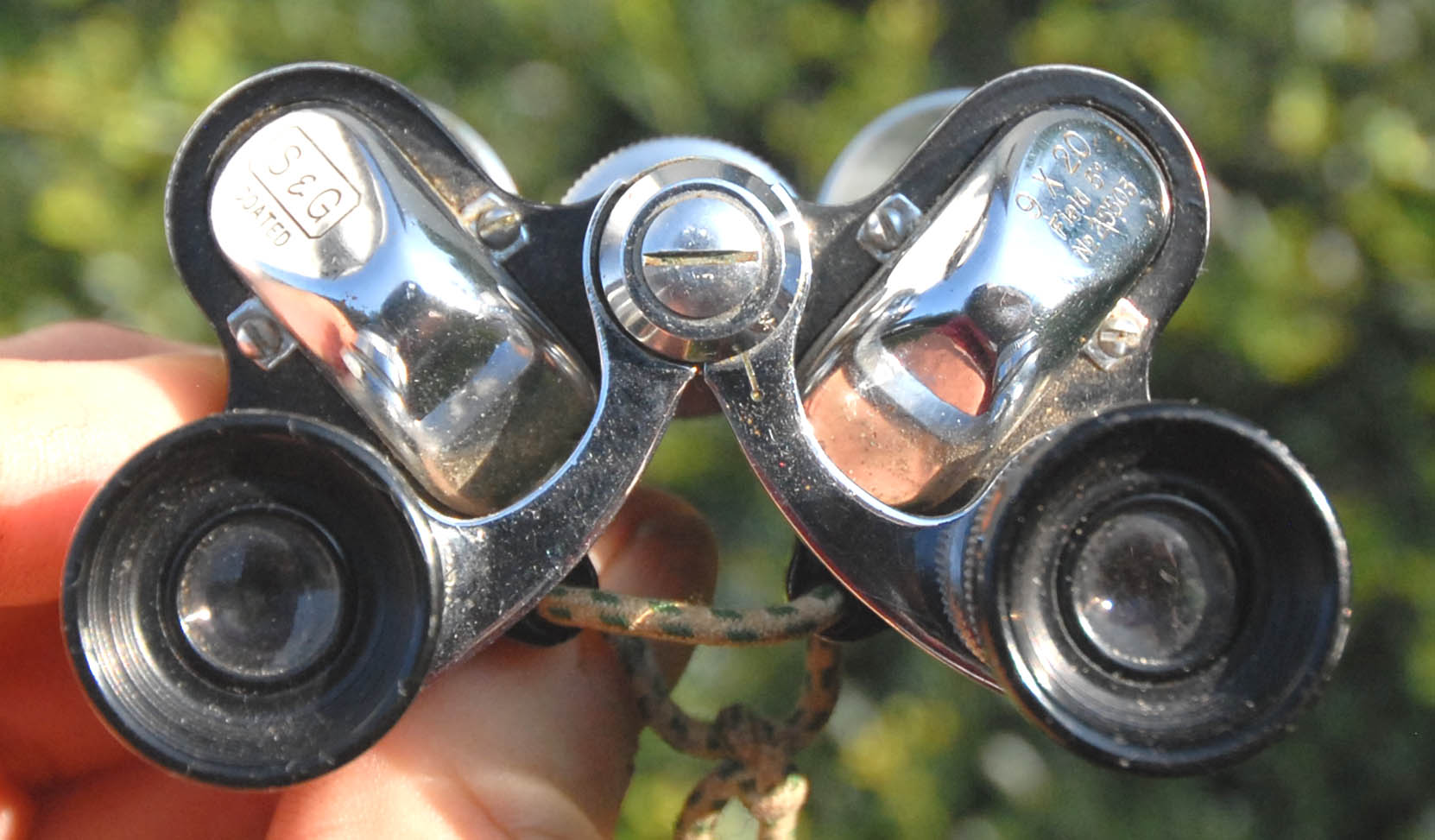

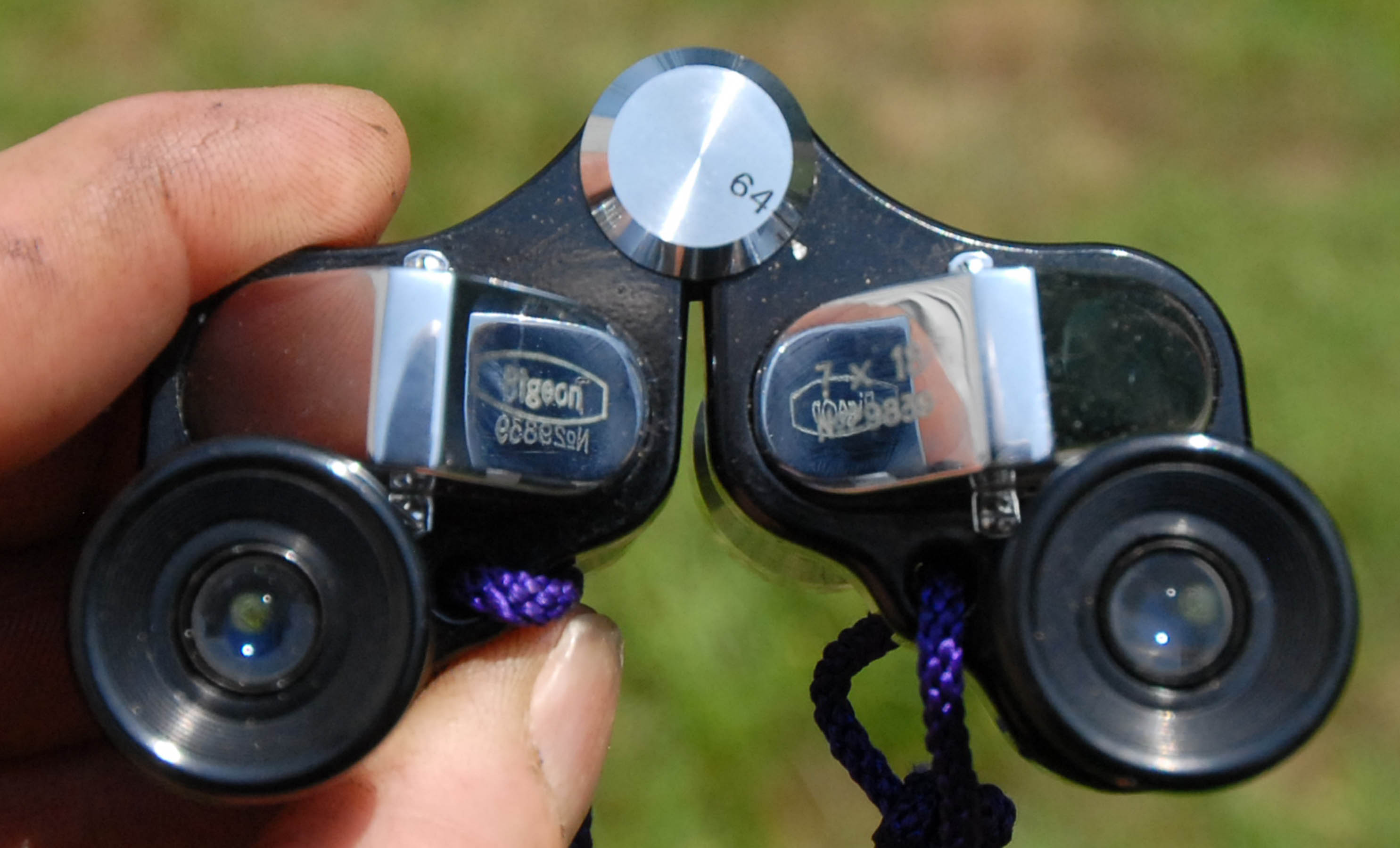

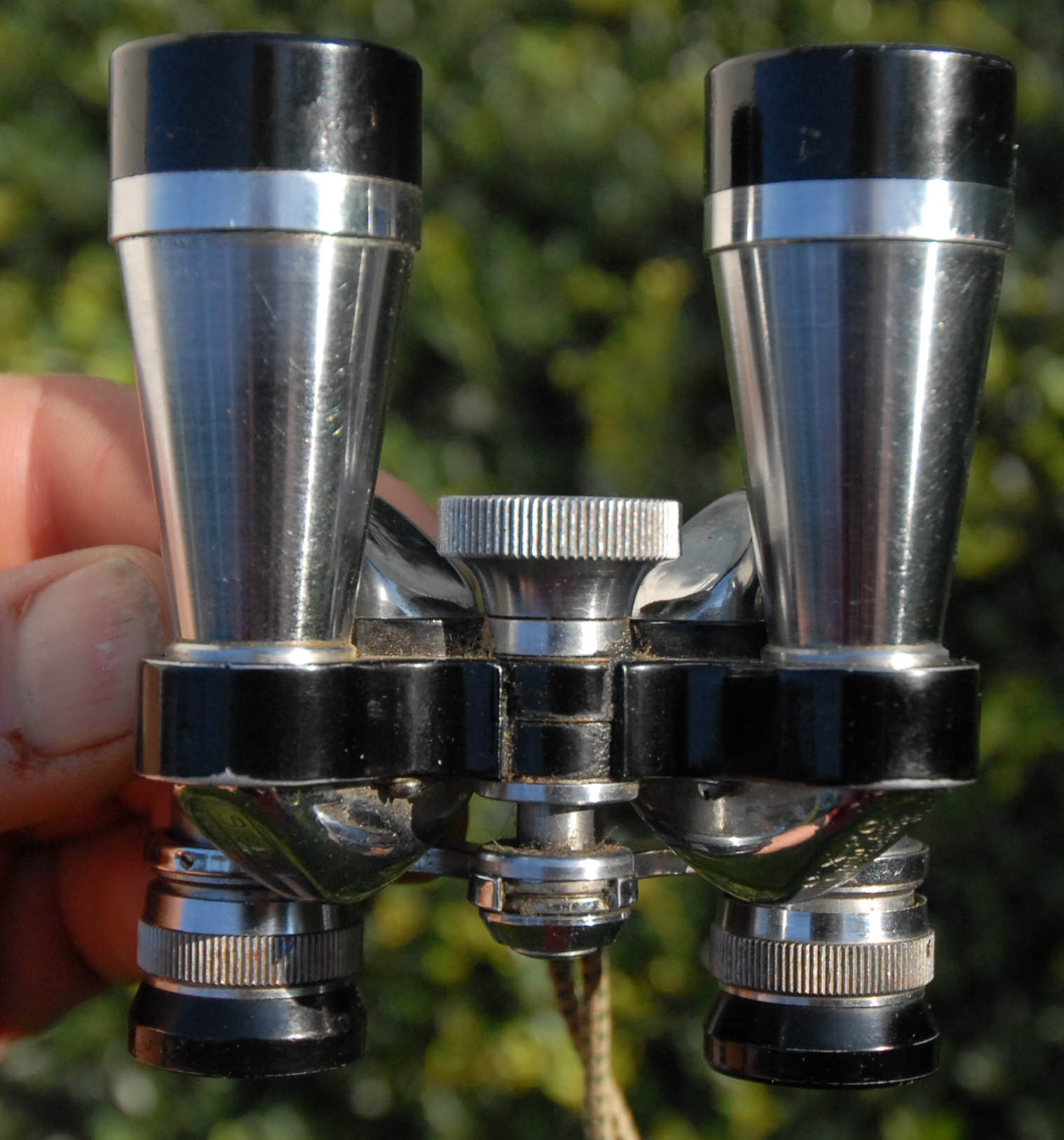

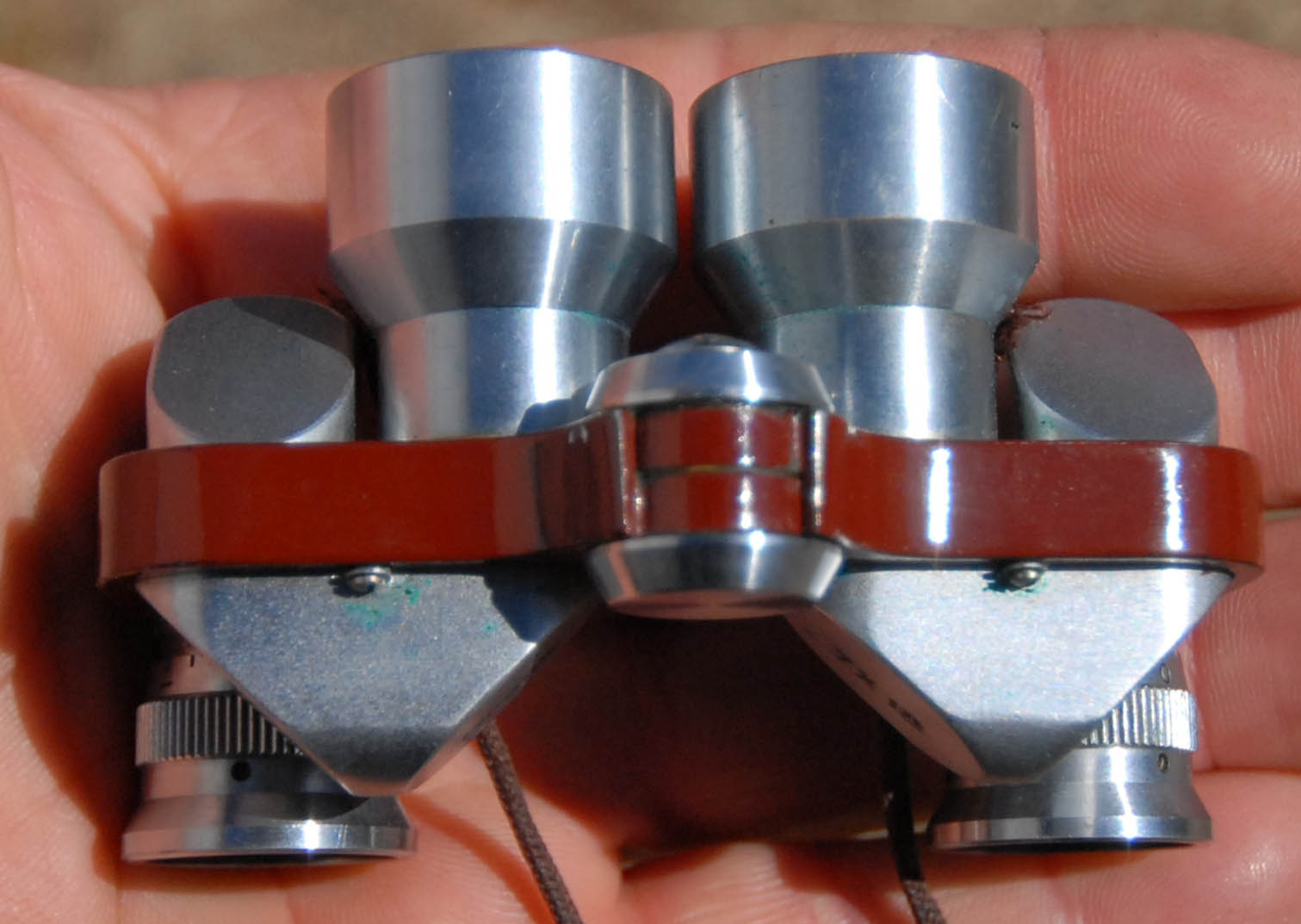

Cleaning the ocular lenses of those center focus binoculars that move the oculars in order to focus is a little different than cleaning the oculars of independent focus binoculars and center focus binoculars that move the objective lenses to focus. Also, the oculars are not sealed, so they tend to get dirty.

         I

  - GERMAN ORIGINS #1

  - GERMAN ORIGINS #2

  - GERMAN ORIGINS #3

  - GERMAN ORIGINS #4

  - GERMAN ORIGINS #5

  - JAPANESE ORIGINS #1

  - JAPANESE ORIGINS #2

  - JAPANESE ORIGINS #3

  - JAPANESE ORIGINS #4

  - JAPANESE ORIGINS #5

  - JAPANESE ORIGINS #6

  - INTRODUCTION #1

  - INTRODUCTION #2

  - DISTRIBUTION #1

  - DISTRIBUTION #2

  - DISTRIBUTION #3

  - DISTRIBUTION #4

  - DISTRIBUTION #5

  - DISTRIBUTION #6

  - DISTRIBUTION #7

  - DISTRIBUTION #8

  - FUN ANALYZING BRANDS #1

  - FUN ANALYZING BRANDS #2

  - FUN ANALYZING BRANDS #3

  - FUN ANALYZING BRANDS #4

  - BINOCULARS BY BRAND A-B

  - BINOCULARS BY BRAND C-G

  - BINOCULARS BY BRAND H-M

  - BINOCULARS BY BRAND N-Q

  - BINOCULARS BY BRAND R-S

  - BINOCULARS BY BRAND T-Z

  - PHOTO GALLERY #1

  - PHOTO GALLERY #2

  - PHOTO GALLERY #3

  - PHOTO GALLERY #4

  - PHOTO GALLERY #5

  - PHOTO GALLERY #6

  - PHOTO GALLERY #7

  - PHOTO GALLERY #8

  - PHOTO GALLERY #9

  - PHOTO GALLERY # 10

  - VINTAGE ADVERTISING #1

  - VINTAGE ADVERTISING #2

  - VINTAGE ADVERTISING #3

  - VINTAGE ADVERTISING #4

  - VINTAGE ADVERTISING #5

  - VINTAGE ADVERTISING #6

  - VINTAGE ADVERTISING #7

  - VINTAGE ADVERTISING #8

  - ORIGINAL BOXES #1

  - ORIGINAL BOXES #2

  - CAN YOU REPAIR THESE?

  - REPAIR SEIZED OCULARS IF

  - COLLIMATE AND REPAIR CF

  - MORE REPAIRS #1

  - MORE REPAIRS #2

  - MORE REPAIRS #3

  - IDENTIFY THIS

  - SWAP SHOP

  - MISC

  - INDEX

  - RESEARCH MATERIALS #1

  - RESEARCH MATERIALS #2

  -DATA BINOCULARS BRAND

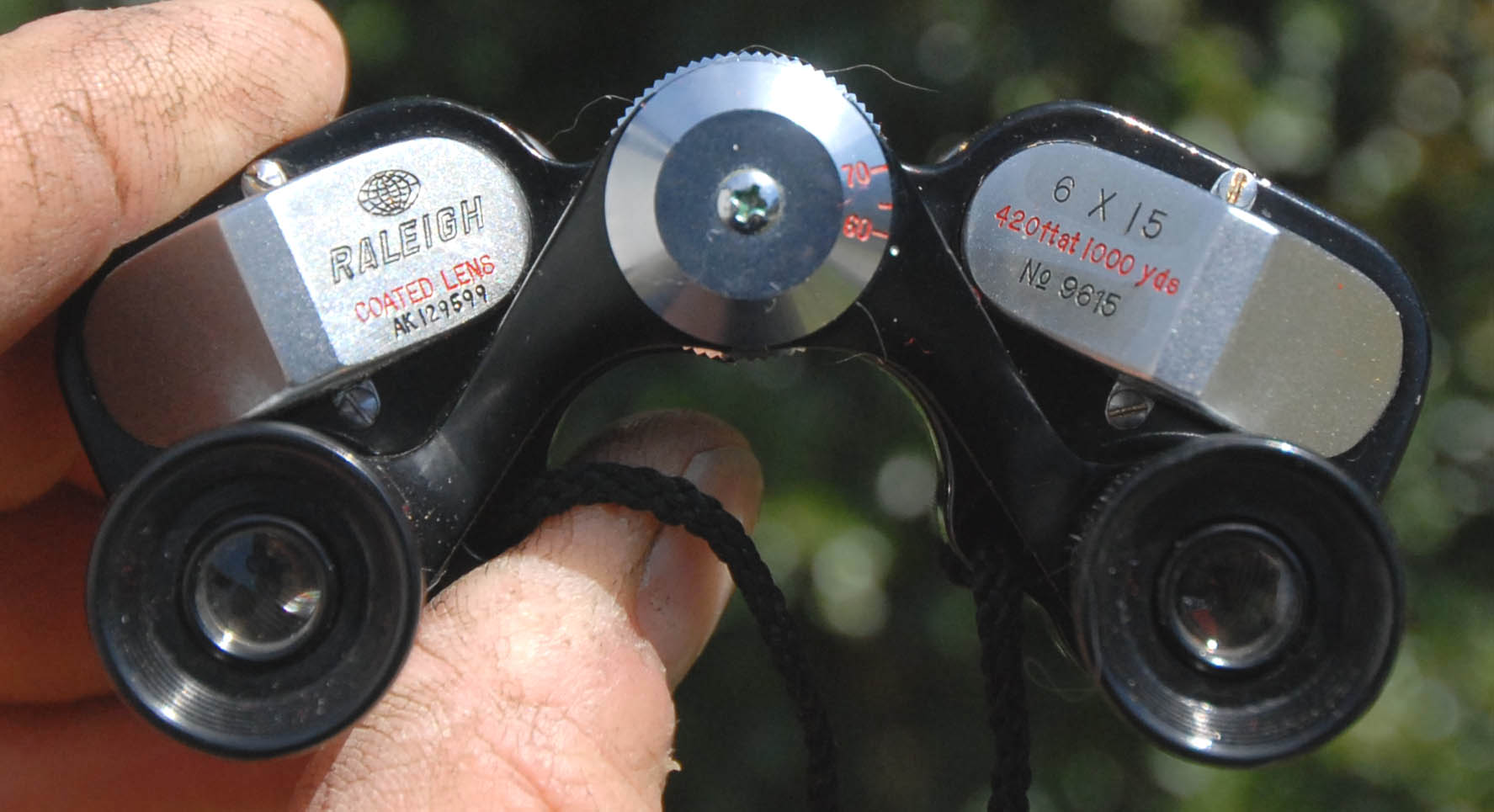

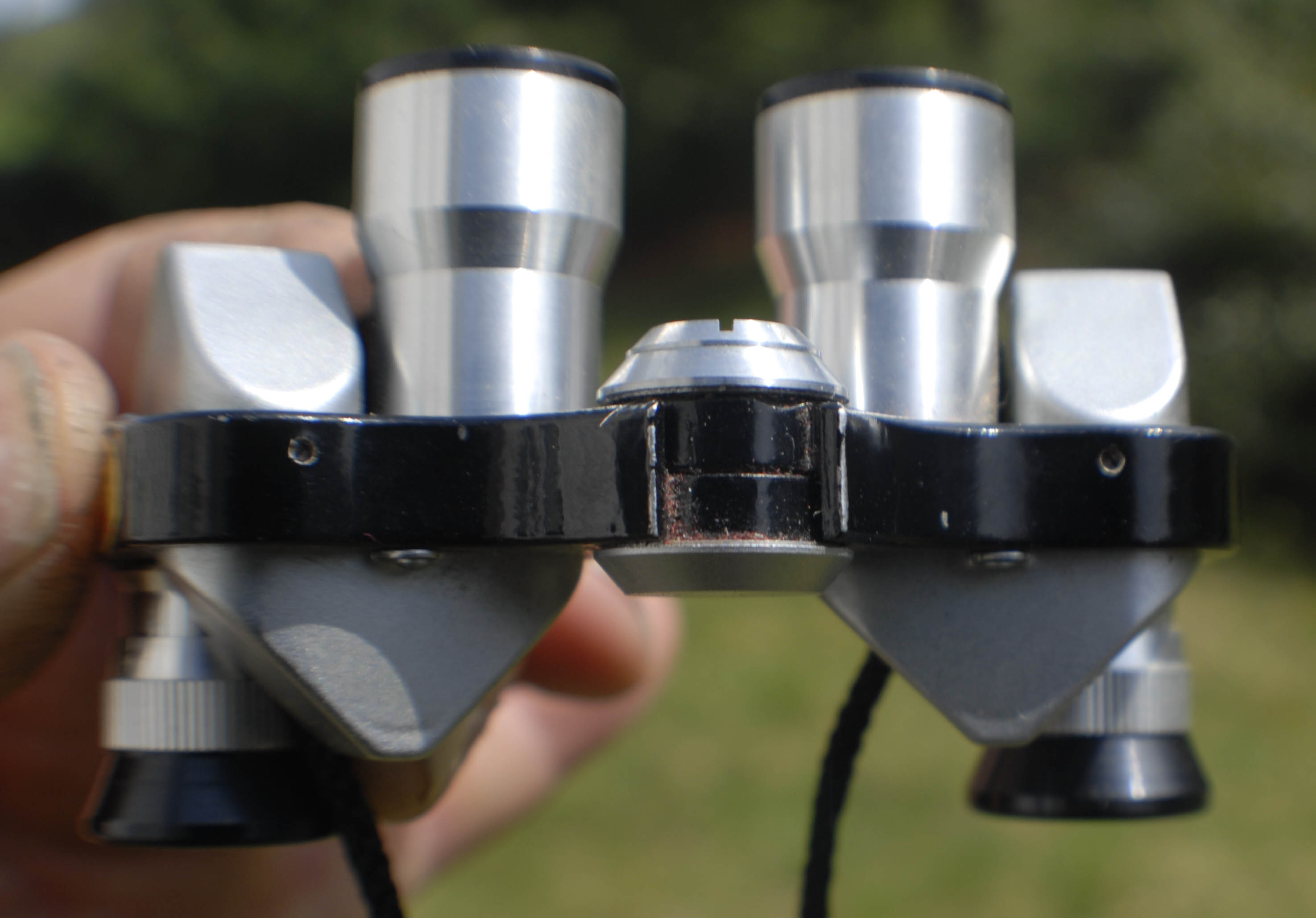

Remove the screw holding the center hinge pivot cover in place, and remove the cover.

Text Box: Step 2

On most of these binoculars there is a screw on the retainer plate that that is locked in place by a small set screw. Remove the set screw. The screw is quite small, so take care not to drop or lose it

Text Box: Step 3

The plate is usually screwed tight. The proper removal method would involve a special wrench with pins that align with holes in the plate. A serviceable expedient is to catch the edge of the hole with a screwdriver blade and then tap the   screwdriver to ”walk” or rotate the plate. It is best to use a cheap screwdriver. After it is loose, remove the plate with your fingers.

Text Box: Step 4

Lift the arm and associated ocular off, making sure neither end binds up. It may be necessary to gently pry the center pivot end off. If you lift one side and the other binds, then it is not too hard to break the arms. Keep track of which arm goes over and which goes under.

Text Box: Step 5

Clean the ocular lens with a cotton swab tip wetted with optical cleaner, followed by a dry cotton swab.   Check for cleanliness.

Text Box: Step 6

Replace the oculars and arms going to the center pivot. Then screw in the plate. Note that on one arm assembly (usually the left one) there may be a   hole the arm that needs to be lined up with a pin.



A

Text Box: B

MORE   REPAIRS #1

Text Box: Step 7

Replace the washer and screw on the plate. Note that the set screw hole in the plate ( A ) will have to line up with a relief hole under it. ( B ) Walk the plate into alignment by tapping the screw driver while watching for the set screw holes to align. Then affix the set screw.

Text Box: Step 7

Re-attach the center pivot beauty cover, with it’s screw.

Miniature Binoculars Parts Interchangeability (and lack thereof). Miniaturfernglas–Teil-Austauschbarkeit. Interchangeabilitié des Pieces   de Rechange des Jumelles Miniature.

Миниатюрные бинокль: детали обмена данными?   Utbytbarhet av Dwelar Miniatyr Kikare. Intercambio de

Partes Entre Prismáticos en Miniature? Il Binocolo in Miniatura Intercambiabilità Delle Parti.

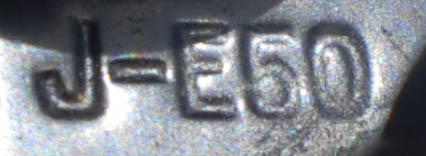

I often get asked “Where can I get replacements for the [frequently missing] plastic eyecups for my Nikon JB-7 marked (older issue) 7x15 binoculars?” The answer is nowhere as far as I know, and I know no eyecups of other binoculars that fit that particular model. Eyecups are often missing from miniature binoculars. Sometimes eyeglass wearers discarded them; sometimes they broke or stripped out or were removed and lost. Replacement parts were not available when the binoculars were new, and are less available now. Purchasing another [preferably cheap and common] binocular with parts that will fit and can be scavenged is the normal recourse to sourcing missing parts. But in general, parts from one manufacturer   (not brand) do not fit another manufacturer’s miniature binoculars, due to minor differences. For my own convenience in sourcing missing eyecups, I created an eyecup interchange list, by physically trying a pair of eyecups on other binoculars in my collection. Keep in mind that a single brand and power of binocular may have been made by multiple manufacturers (I have documented at least 4 variants for Selsi 7x18 CF binoculars for example). So pay a lot of attention to JB manufacturer code numbers of what you are buying to get parts from. Because of all the variables, it is best to view my interchange as a “probability” chart, and while it certainly increases the chances of getting something that will fit, it hardly guarantees it. It is specific to brand, power, focus type, and manufacturer “JB” mark. I will expand this when I have nothing else to do (infrequent occurrence).

“MSC / Meiji Seiko” Pattern Binoculars Eyecups

MSC/ Meiji Seiko Muster der Augenmuscheln. MSC / Meiji Seiko Modèle des

Boucliers d'oeil. Prismáticos Anteojeras: Meiji Seiko Patrón.

“MSC” ( Meiji Seiko Co. Ltd.) pattern eyecup, all plastic. Most binoculars using this are not JB marked. Those with any manufacturer indication are MSC marked/ Meiji Seiko Co. Ltd

EYECUP INTERCHANGE

Adams 6x15 IF binoculars

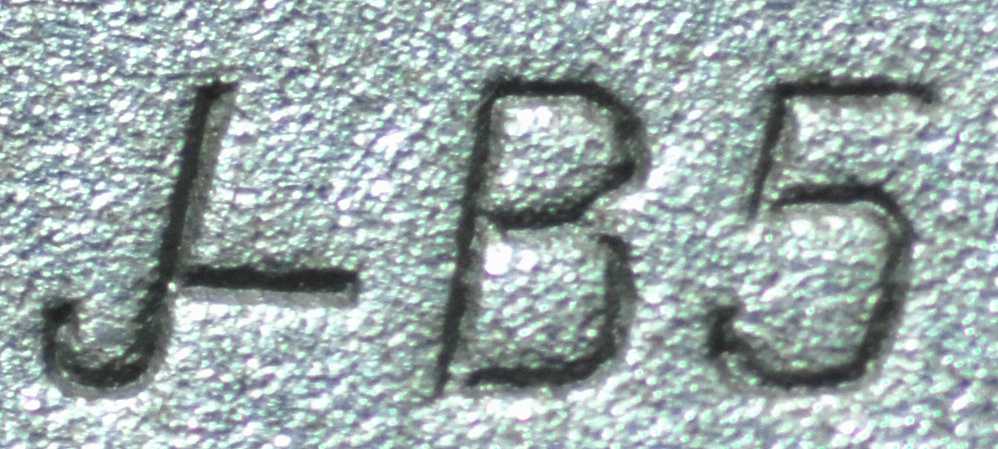

Arrow 6x15 CF JB5 marked binoculars

Atlas 6x15 IF “ MSC ” marked binoculars

Binolux 10x20 IF binoculars

Broco 7x18 CF “ MSC ” marked binoculars

Fortuna 6x15 CF JE50 marked frame

Lupinus 10x20 IF binoculars

Mayar 8x20 CF binoculars

Minuette 7x18 IF binoculars

Perl 8x20 CF “ MSC ” & JE50 marked binoculars

Plum 6x15 IF binoculars

Rainbow 8x20 CF binoculars

Rainbow 8x20 CF “ MSC ” marked binoculars

Silver 6x15 CF “ MSC ” marked binoculars

Skyline 6x15 IF binoculars

Skyline 7x18 IF binoculars

Skyline 8x20 IF binoculars

Yoshida 6x15 MIOJ IF binoculars

Yoshida 7x18 MIOJ IF binoculars



“Seiwa” Pattern Eyecups. Seiwa Muster der Augenmuscheln.   Seiwa Modèle des Boucliers d'oeil. Prismáticos Anteojeras: Seiwa Patrón.

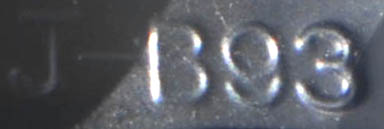

“Seiwa Kogaku Co Ltd pattern” eyecup interchange. Most binoculars using this pattern eyecup are JB93 / Seiwa Kogaku Co Ltd marked.

Aristotone 6x15 IF JB93 marked binoculars

Aurora 7x18 CF JB93 marked binoculars

Binolux 6x15 IF JB93 marked binoculars

Binolux 8x20 CF JB93 marked binoculars

Gold Cup 8x20 CF JB93 marked binoculars

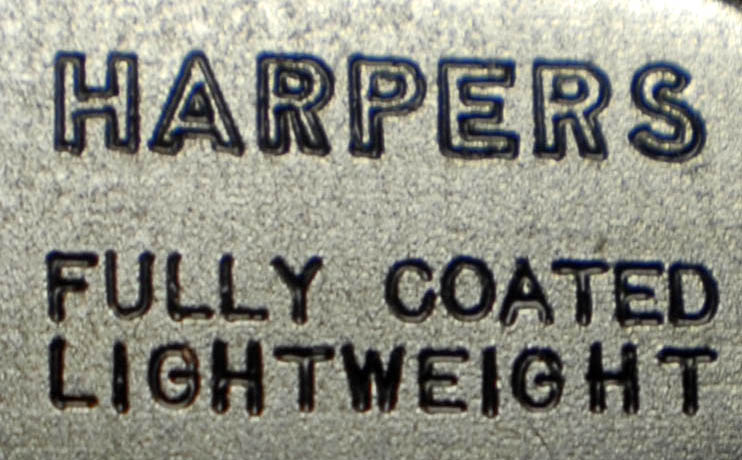

Harpers 7x18 IF binoculars

Jason 6x15 CF JB93 marked binoculars

Petlux Shannon 10x20 CF JB93 marked binoculars

Raiya 10x20 CF JB93 marked binoculars

Sears 7x15 CF JB93 marked binoculars

Scope 7x20 CF JB93 marked binoculars

St Moritz 6x15 IF binoculars

Yoshida Thorobred 6x15 IF binoculars

10.70mm

Dimensions approximate

20.16 mm

22.16 mm

12.85 mm

Dimensions approximate

Unfortunately, lots of binoculars are found like this with a missing eyepiece.

Uncooperative Eyecups. Repair Tip. Unkooperativer Augenmuscheln. Reparatur Tipp. Récalcitrants œilletons.   Réparation Astuce. Миниатюрные бинокль ремонт предложение. Icke Samarbetsvilliga Öga Koppar På Kikare. Reparera Tips. 小型双眼鏡修理提案 . Anteojeras no Cooperativa. Reparación Punta. Tazze D’0cchio no Cooperativi. Punta di riparazione.

In order to get at the screws for the binocular ocular ring, to work on a seized ocular the assembly, the eyecups must be taken off. Usually they simply unscrew with your fingers with a concerted effort. Sometimes they don’t. Once in a while it is because a previous owner stripped them out and glued them on. But more often they are simply jammed in place or cross threaded. This seems to happen most often with the earlier entirely Bakelite eyecups. Bakelite is a phenolic plastic (technical name is polyoxybenzylmethylenglycolanhydride ), and was one of the first plastics to be developed (around 1909). Because it is non conductive to electricity and is heat resistant, it is still used on things like automotive distributor caps and coils and cooking pot handles. Older steering wheels used to be made of it. But it is quite brittle. So you can’t grip these eyecups with pliers, as the eyecups will shatter. The method I use is get a narrow automotive hose clamp (narrow ones have a better curvature of the rigid part) and gingerly snug it on the eyecup until it doesn’t slide. I then use Robogrips® on the knurled ring (I like that tool for this purpose   as they have good feedback and feel, so it is easier not to crush the fairly flimsy rings, and if you are careful you can be progressive with the force and get a good grip that will not slip and damage the parts). A second hose clam would also work well. I spent ten minutes trying to get the Bakelite eyepieces off this binocular with my hands without any success (and I have a reasonably strong grip). When it looked like I might have to deliberately crack them to get them off, I then used the setup shown, and they came off without damaging anything.

Uncooperative Screws. Repair Tip #2. Unkooperativer Schrauben. Reparatur Tipp #2. Non

Coopératif Vis. Réparation Astuce #2. Миниатюрные бинокль ремонт предложение. 小型双眼鏡修理提案 .

Icke Samarbetsvilliga Skruvar. Reparera Tips #2. Los Tornillos no Cooperativos. Reparación Punta #2. . Viti non Cooperanti. Punta di Riparazione #2.

Heat will   work on screws that are reluctant to turn due to corrosion, and it is a quick remedial method. However, sometimes these screws are close to painted surfaces, which applying heat would damage. An example would be the set screws for adjusting the prisms which are set into the painted binocular frame. If these screws are uncooperative, and if you use too much force, then the screw slots will simply strip out. Around the time you realize the screw doesn’t want to turn, but before you strip the slots off, it is advisable to place one drop of PB Blaster® penetrating lube on the screw and let it penetrate overnight. Or for 10 minutes if you are less patient. The idea is that the lube will penetrate into the threads, reducing friction enough for the screw to turn out. It usually works.

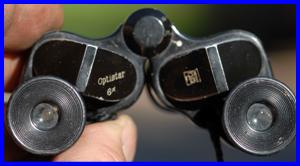

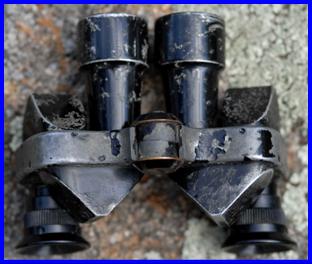

The prisms were out of collimation on these 90 plus year old German Optistar miniature binoculars. But the prism set screws did not want to turn due to the advanced corrosion between the alloy frame and brass screws. One drop of PB Blaster® and a bit of patience to let it penetrate overnight corrected the impediment, and then both set screws were able to be adjusted and the collimation issue was easily corrected.

Uncooperative Screws. Repair Tip #1. Unkooperativer Schrauben. Reparatur Tipp #1. Non

Coopératif Vis. Réparation Astuce #1. Миниатюрные бинокль ремонт предложение. 小型双眼鏡修理提案 . Icke Samarbetsvilliga Skruvar. Reparera Tips #1. Los Tornillos no Cooperativos. Reparación Punta #1. Viti non Cooperanti. Punta di Riparazione #1.

Drip lube from a screwdriver tip onto the screw. Then let it soak in.

One way to deal with screws that are reluctant to turn due to corrosion, is to heat them with a pencil torch. For example, if uncooperative, the three screws on the binocular diopter ring would be appropriate candidates for this. The idea is heat the screw so that it expands differently than its surroundings, as well as breaking down any materials in the threads, reducing friction enough for the screw to turn out. Though a bit counterintuitive, the heat expansion differential is usually enough to free up the screw. On a larger and more demanding   application a similar method is used on some tight fitting bearings, where the bearing assy is frozen and the housing is put in an oven (shrinking the frozen one and expanding the heated one) to get an interference fit at normal temperatures.

Heating a diopter ring screw to release it. Note use of a heat resistant backstop for the binocular: in this case a roll of fencing wire that actually holds the binocular well.

Japanese External Reverse Porro Prism Binoculars. VIRTUAL MUSEUM

Collimation of Miniature Binoculars (Binoculars Without Adjustment Screws)

Kollimation der Prismen der Miniaturferngläser. ( Fernglas ohne Stellschtrauben).Collimation des Prismes des

Jumelles Miniatures. (Jumelles Sans Vis de Rélage).   小型双眼鏡 のプリズム調整   Коллимация миниатюрных

Бинокль. Kollimering av Miniatyr Kikare (Kikare utan Justeringsskruvar). Colimación de Óptica Prismáticos en

Miniatura. (Prismáticos sin Tornillos de Ajuste). Collimazione di Binocoli in Miniature (Binocolo Senza Viti di Regolazione)

Almost all miniature binoculars of this type use adjuster screws to move and align the prisms. But a few don’t have screws. These include most of the vintage Omega binoculars, and most of the new Chinese made binoculars of this design. This was apparently done to save the cost of drilling and tapping 8 holes in the frame.

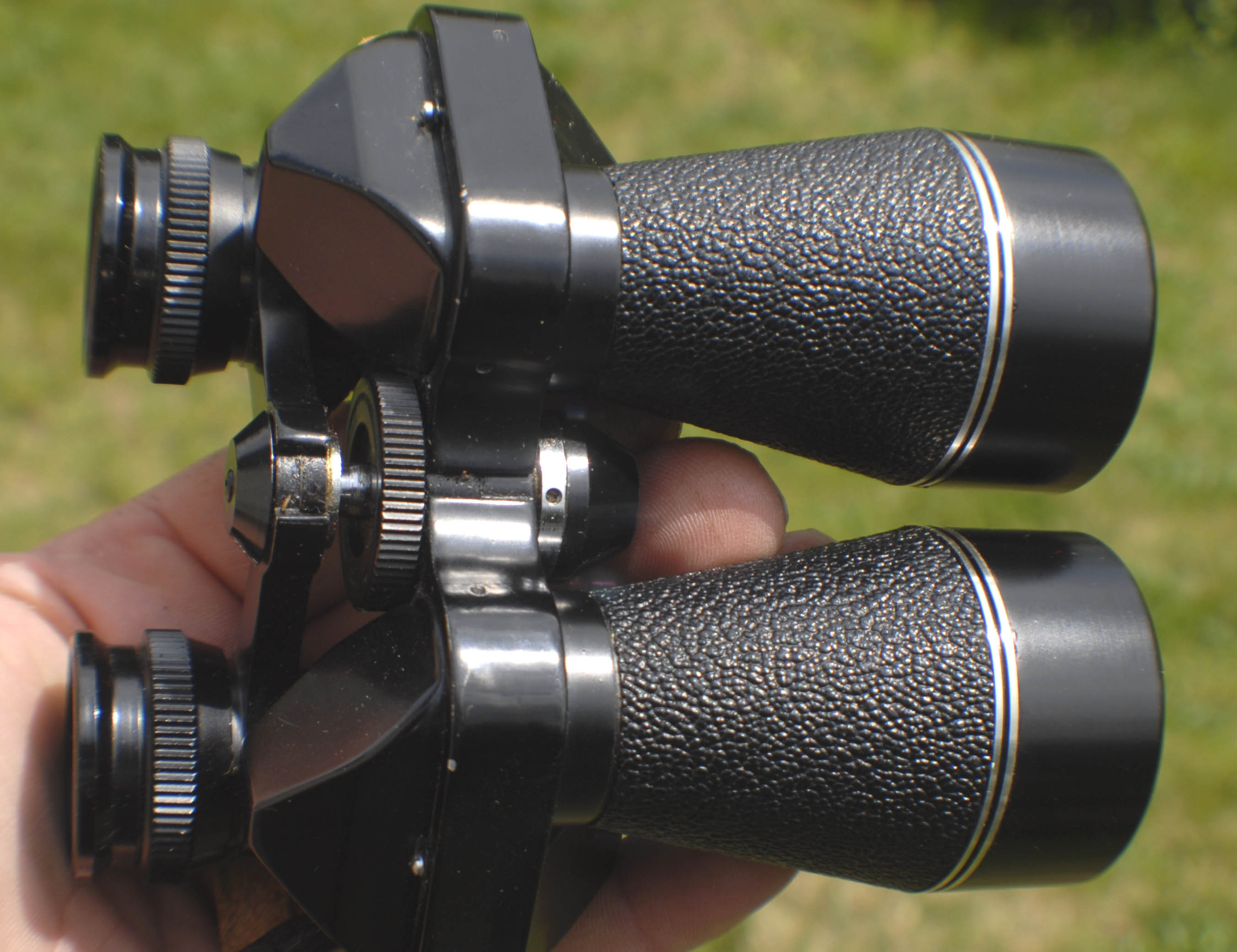

Most Omega brand binoculars lack prism adjuster screws. This unusually powerful pair of 15x24 binoculars is no exception, and as usual they arrived very badly collimated with a double image. Because of no adjustment screws, and collimation often bad, I like Omega binoculars least of all the vintage binoculars of this type. However, it is possible to adjust the prisms using shims, as I will demonstrate.

Text Box: Step 1

To adjust the prisms of binoculars without adjuster screws, first remove the screws holding the prism cover of the prism you wish to effect.

Text Box: Step 2

This picture shows a factory installed shim in place. Shims are located to tilt the prism along it’s horizontal axis.

Text Box: Step 3

By adding and deleting shims, if you are lucky, the prisms can be aligned or collimated enough to give a single image. A certain amount of trial and error is involved and the process is far harder and less precise than with binoculars with prism adjusting screws. Keep in mind that this form of collimation is one of conditional alignment or image merging rather than the collimation method by optical instrument that may provide 3 axis collimation.

Text Box: Step 4

The shims are card paper. Cutting a manila   folder from an office supply store gives a shim thickness that is similar and functional.

Text Box: Step 5

I was able to achieve a decent collimation of these 15x24 binoculars that arrived with a horrible double image in around 15 minutes. I considered that result to be a pleasant surprise.

Miniature Binoculars: Ocular Repair. Miniatur-Ferngläser : Okular Reparatur. Jumelles Miniatures : Réparation de Lentille Oculaire . Миниатюрные бинокли : Глазные Ремонт объектива. Miniatyr kikare : okularlinsen Repair . Prismáticos Miniatura : Reparación de la Lente Ocular. Binocolo in Miniatura: Riparazioni Oculari.

This is how the ocular (lens pack closest to the eye) normally looks. You can clearly see the first lens.

This is how the oculars looked on a pair   of miniature binoculars I recently acquired. There is obviously a problem. What has occurred is the retaining ring that holds the first lens in place has unscrewed itself and let the lens fall into the assembly. The process to repair this condition is as follows...

Text Box: Step 1

Loosen the three screws holding the ocular ring in place (in this instance the ocular ring and eyepiece are one integrated part...otherwise first   remove the eye shield to get access to the screws under it)

Text Box: Step 2

Remove the ocular ring.

Text Box: Step 3

Unscrew and remove the ocular assembly.

Text Box: Step 4

Unscrew and remove retaining ring or collar inside the ocular tube by rotating it by it’s slot (walk it around) and remove the lens. Do the same for the smaller interior collar and lay the parts out and clean them.

Text Box: Step 5

plano convex lens

Text Box: Step 6

In this instance both lenses in the ocular lens pack are plano convex lenses (flat one side and domed the other), and they must be correctly positioned. You can check against the other ocular assembly if in doubt. In this case the flat surface of the smaller lens is closest to the eye.

Drop the smaller lens flat side down into the ocular barrel and make sure it goes all the way in. Then drop the retaining collar in place with slotted surface toward you and screw it into place   by rotating it with a screwdriver.

New shim

Text Box: Step 7

The larger lens is also a plano convex lens. In this case the dome side goes down and the flat side closest to you. Screw the retaining ring in place.

Orientation of lenses

Text Box: Step 8

Screw the ocular assembly into the ocular barrel. Replace the ocular ring/ and eyepiece and fasten in place. The last photo shows the repaired binoculars.
